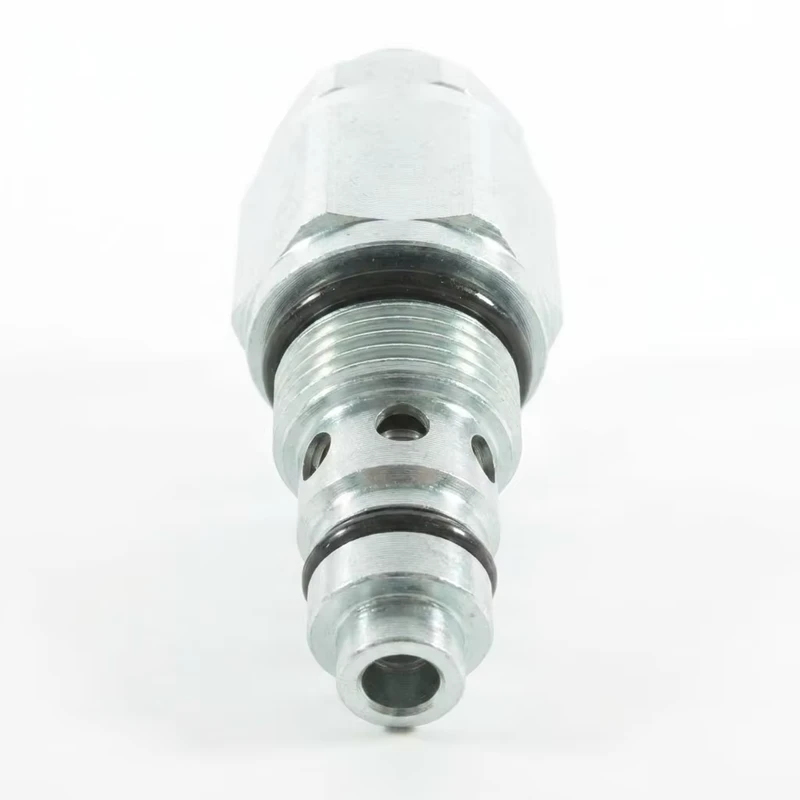

Gold Certified IRV 08 Series Threaded Cartridge Direct Acting Seat Type Relief Valve Low Leakage Customized
$10.08-11.98
/pieces
Price varies depending on material, logo, quantity and customization requirements.
Quality You Can Trust
Flexible & Scalable Solutions
Customizable Product Options
Comprehensive Specifications
Your Reliable Business Partner
Category:
Pressure Reducing Valves
Introduction
| Valve type | Relief Valves | Number Of Ways | One-way |
| Maximum pressure | 350bar | Maximum Flow Rate | 30L/min |
| Port Connection Size | 1/4 in | Pressure Connection | 3/4 in |
| Flow Range (gpm) | 7.92gpm | Showroom Location | None |
| Dimension(L*W*H) | 77.5*12.7*5(mm) | Weight | 0.15 |
| Power(W) | - | Pressure | - |
| Structure | - | Maximum operating pressure | 350 bar(5100psi) |
| Maximum flow | 30L/min(7.92gpm | Maximum internal leakage | 0.25ml/min(5drops/min)@80%minal set point |
| Installation torque | 18.5-2 ft-lbs(25-30 Nm), Hex.19 | Orientation | No restrictions |
| Oil Temperature Range | -40°Cto120°C( seals matching required) | Fluids | Mineral-based or synthetics with lubricating properties |
| Viscosities | 7.4 to 420 cSt(50-2000ssu) | Filtration | 20/18/15 ISO4406(maximum filtration admitted) |
| Cavity | IVC08-2 |
